SL 372 Radial Heat Conduction Apparatus Didactic Equipment School Equipment Training Thermal Training Equipment 1. Equipment introduction
1.1 Overview

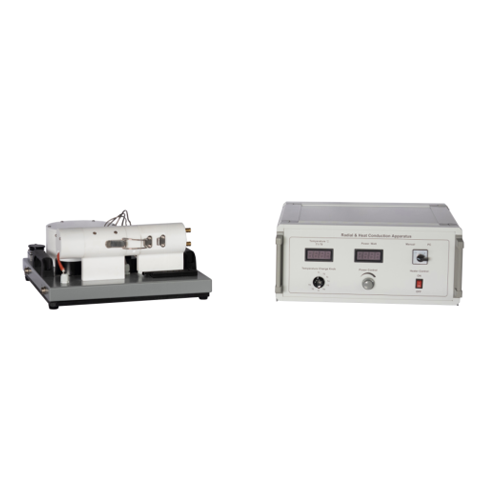

SL 372 radial heat conduction meter is a thermodynamic device for studying the distribution laws of heat conduction. The teaching device is composed of an electrical control box, a radial experiment module and a linear experiment module. It demonstrates different heat transfer modes to students and studies the factors affecting heat transfer as well as the basic laws and characteristic variables of heat conduction.
1.2 Features
(1) The overall scale is small, plug and play, complete functions, and can meet the requirements of experimental teaching.
(2) Adopt integrated USB interface to facilitate communication with PC.
(3) Using modular design, the device provides two different types of heat exchanger modules. 2. Technical parameters
Input power: single-phase single-wire 240V+/- 10% 50Hz
weight: 420*430*390mm
size: 27kg
Working conditions: ambient temperature -10℃～+40℃; relative humidity <85% (25℃) 3. Components list and detailed introduction
3.1 Main part
No Name
1 Radial heat conduction experiment module
2 Replacement kit
3 Linear heat conduction experiment module
4 Cold water supply import and export
5 Used to provide experimental cold source
3.2 Power box part
No Name
1 Temperature display instrument
2 Power display instrument
3 Mode switching knob
4 Temperature sensor switch knob
5 Power control knob
6 Heater switch control
7 breaker
8 AC220V power input port
9 Temperature sensor signal input port
10 Heater power output port
11 USB communication port
3.3 Equipment configuration list
No Name Qty
Component 1 Radial heat conduction experiment module 1
Component 2 Linear heat conduction experiment module 1
Component 3 Replaceable thermal kit 2
Component 4 Temperature display instrument 1
Component 5 Power display instrument 1
3.4 Accessories
No Name Qty
1 Replaceable thermal kit 2
2 hose 2
3 heater power extension cord 1
4 power extension cord 1
5 USB cable 1
6 Sensor extension cable 1
7 clamp 5
8 Software CD 1 4. Experiment list
Experiment 1 Understand the working principle of the radial heat conduction meter
Experiment 2 Demonstration of the radial heat conduction experiment of the radial heat conduction meter
Experiment 3 Demonstration of linear thermal conductivity experiment of radial thermal conductivity meter
Experiment 4 Comparative experiment to demonstrate the linear different thermal conductivity modules of the radial thermal conductivity meter
Experiment 5 Demonstrates the radial thermal conductivity experiment software function of the radial thermal conductivity meter
Experiment 6 Demonstrates the linear thermal conductivity experiment software function of the radial thermal conductivity meter
