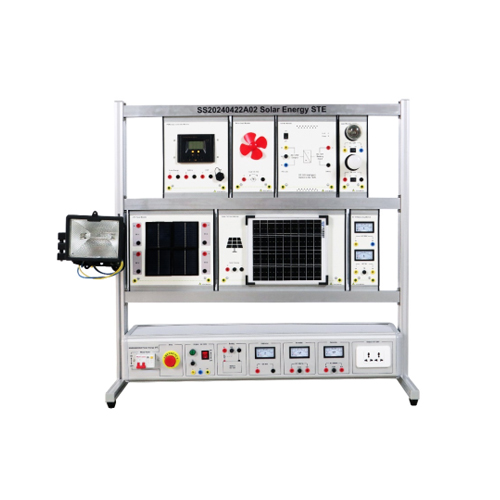

SS20240422A02 Solar Energy STE School Educational Equipment Vocational Trainer Workbench Renewable Training Equipment
1. Product Introduction
1.1 Product Description
The electricity generated by simulating light irradiation on the photovoltaic panel is used to charge the battery through the solar controller. When needed, the solar controller outputs DC power through the battery. The inverter can convert DC power into AC power.
The experimental kit includes solar control module, inverter module, AC/DC load module, photovoltaic panel module measurement module, power supply box and other parts, which can cover all relevant educational content in a specific experiment.
1.2 Product Features
1. Integrated design: The photovoltaic power generation experimental teaching equipment integrates key components such as photovoltaic modules, inverters, energy storage devices and intelligent control systems. This integrated design enables the equipment to simulate the real photovoltaic power generation environment and support experiments from basic photovoltaic cell characteristics analysis to complex grid-connected power generation system experiments.
2. Modular structure: The experimental device usually adopts a modular structure design, and the electrical test points are connected to the experimental wires with safe experimental jacks, which is convenient for teaching and experimental operation.
3. Versatility: The equipment not only has high-precision measurement functions, but also can monitor the photovoltaic system in real time, including effective monitoring of parameters such as voltage, current, and power.
4. Comprehensive protection functions: The equipment has a variety of protection functions to ensure the safety of the experimental process.
5. Load unit: The equipment contains DC load and AC load, which can be used for solar photovoltaic system electrical load experiments.
6. Strong environmental adaptability: The equipment is usually designed with a wide operating temperature range and humidity requirements to adapt to different experimental environments.
7. Combination of teaching and practice: The photovoltaic power generation experimental teaching equipment aims to deepen students' understanding of photovoltaic power generation technology and enhance professional ability and practical skills through practical operation and management system.
2. Technical specifications
2.1 Technical parameters
Battery: DC12V; 8AH
Halogen lamp: 120V; 500W
Solar controller: PWM; 10A; 12/24V universal
Incandescent bulb: AC110V/40W
LED bulb: 12V/5W
Inverter: Input: DC 12V; Output: AC 110V, 60HZ; Power: 1000W
2.2 Dimensions and weight
Dimensions: 1100mm×450mm×1150mm
Weight: <56kg
3. Product component names and function introduction
3.1 Product module part
No. Name
1 Solar controller module
2 Fan module
3 Inverter module
4 Load module
5 Four photovoltaic panel modules
6 Photovoltaic panel module
7 Measurement module
8 Simulated light source
3.2 Product power box
No. Name
1 Circuit breaker
2 Emergency stop switch
3 AC output unit
4 Battery unit
5 DC voltage measuring unit (50V)
6 DC current measuring unit (100mA)
7 DC current measuring unit (500mA)
8 Socket
3.3 Product accessories
No. Name
1 Digital multimeter
2 USB cable
3 4mm safety electrical cable (yellow)
4 4mm safety electrical cable (blue)
5 4mm safety electrical cable (double)
6 4mm safety electrical cable (red)
7 4mm safety electrical cable (black)
8 Fuse (20A)
9 Fuse (5A)
10 Fuse (1A)
4. Product Configuration List
No. Name Qty
1 Solar controller module 1
2 Fan module 1
3 Inverter module 1
4 Load module 1
5 Photovoltaic panel module 1
6 Four photovoltaic panel modules 1
7 Measurement module 1
8 Circuit breaker 1
9 Emergency stop switch 1
10 AC output unit 1
11 Battery unit 1
12 DC voltage measurement unit (50V) 1
13 DC current measurement unit 2
14 Socket
15 Digital multimeter 1
16 USB cable 1
17 4mm safety electrical cable(yellow) 1
18 4mm safety electrical cable (blue) 5
19 4mm safety electrical cable (double) 5
20 4mm safety electrical cable (red) 5
21 4mm safety electrical cable (black) 5
22 Fuse (20A) 5
23 Fuse (5A) 2
24 Fuse (1A) 5
5. Product Teaching Experiment List
(1) Photovoltaic Panel Series and Parallel
(2) Battery Inversion Experiment
(3) Battery Charging Experiment
(4) Battery Discharging Experiment
(5) Photovoltaic Power Generation Experiment
(6) Software Usage Experiment
