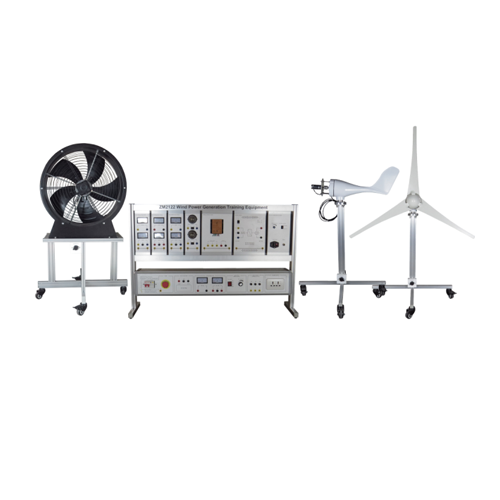

ZM2131 Wind Power Generation Training Equipment Didactic Equipment School Equipment Training Renewable Energy Trainer Solar Power Teaching System 1. Product overview
1.1 Overview
This training equipment consists of six major unit systems: power generation unit, charging unit, power storage unit, inverter module, control unit, and load unit. You can be familiar with the basic knowledge of wind power generation and the installation, commissioning, operation, maintenance, and fault analysis. Understand and analyze fault diagnosis, master its principles and control methods, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skill training assessments in related majors in higher vocational schools, vocational schools, secondary vocational schools, and technical schools.
1.2 Features
(1) The training device adopts an aluminum profile column frame structure, which is simple and elegant as a whole. The bottom is equipped with a universal wheel, which can be flexibly moved and the height can be adjusted independently according to the ground conditions. It is easy to use and not easy to damage.
(2) Adjustable wind speed, complete configuration, easy to use.
(3) The combination of software and hardware can complete the training content of various courses
(4) The training equipment has a good safety protection system.
2. Performance parameters
(1) Input power supply: single-phase AC220V±10% 50Hz
(2) Overall capacity: <2KVA
(3) Weight: <250kg
(4) Working conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃) 3. Product composition
3.1 Equipment
The equipment is supported by aluminum profile columns, and the bottom is equipped with universal wheels, which can move flexibly and can be adjusted according to the ground conditions.
3.2 Power box
Hanging box part
1 AC Load Module
2 Inverter module
3 Wind power control module
4 DC voltage and ammeter module
5 AC voltage and ammeter module 1
6 AC voltage and ammeter module 2
7 Motor speed control module
3.3 Accessories
(1) Charger
(2) K4 terminal wires (6 red, 7 black, 6 green, 6 yellow)
(3) K4 terminal (1 yellow, one green, and one red)
(4) 10 fuses 5A
(5) One cable each for the simulated wind source and the wind power generation device
4. Complete the training content
4.1 Wind power generation experiment
(1) The principle of wind power generation
(2) After the load is connected, the voltage changes.
