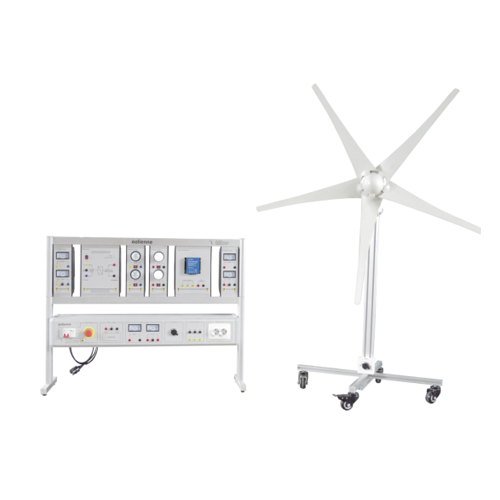

ZM2132 Wind Turbine Trainer Didactic Equipment School Equipment Training Renewable Training Equipment 1. Product overview
1.1 Overview
This training equipment consists of six major unit systems: power generation unit, charging unit, power storage unit, inverter module, control unit, and load unit. You can be familiar with the basic knowledge of wind power generation and the installation, commissioning, operation, maintenance, and fault analysis. Understand and analyze fault diagnosis, master its principles and control methods, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skill training assessments of related majors in higher vocational schools, vocational schools, secondary vocational schools, and technical schools.
1.2 Features
(1) The training device adopts an aluminum profile column frame structure, which is simple and elegant as a whole. The bottom is equipped with a universal wheel, which can be flexibly moved, easy to use, and not easy to be damaged.
(2) The combination of software and hardware can complete the training content of various courses
(3) The training equipment has a good safety protection system.
2. Performance parameters
(1) Input power supply: single-phase AC220V±10% 50Hz
(2) Overall capacity: <2KVA
(3) Working conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃)
3. Complete the training content
3.1 Wind power generation experiment
(1) Inverter experiment
(2) Wind power generation experiment
(3) Load current and voltage measurement experiment
(4) AC load experiment
