ZM2133 Solar Pump Water Trainer Educational School Laboratory Workbench Vocational Education Equipment Thermal Training Equipment 1. Product overview
1.1 Overview

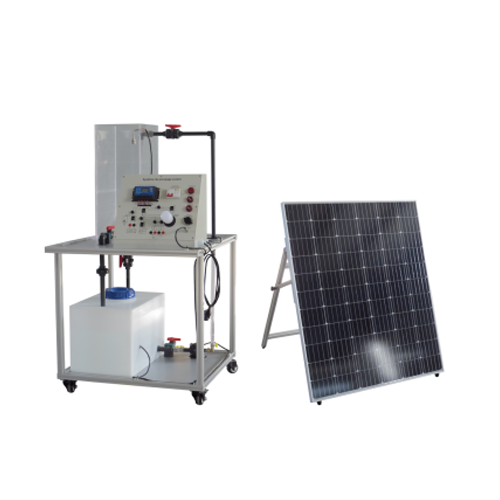

This training equipment is composed of control system, water pump, power generation unit, charging unit, and electric energy storage unit. You can be familiar with the basic knowledge of photovoltaic power generation and have an understanding and analysis of installation, commissioning, operation, maintenance, fault analysis and fault diagnosis. Its principle and control method cultivate students' corresponding knowledge and skills, and are suitable for teaching and skill training assessment of related majors in higher vocational schools, vocational schools, secondary vocational schools and technical schools.
1.2 Features
(1) The training device adopts an aluminum profile column frame structure, which is simple and elegant as a whole. The bottom is equipped with a universal wheel, which can be flexibly moved and the height can be adjusted independently according to the ground conditions. It is easy to use and not easy to damage.
(2) The angle of the solar photovoltaic panel can be adjusted freely, which is convenient to increase the illumination area.
(3) Liquid level alarm to protect the motor and prevent the overflow of liquid in the upper tank.
(4) The training equipment has a good safety protection system.
2. Performance parameters
(1) Input power supply: single-phase AC220V±10% 50Hz
(2) Overall capacity: <2KVA
(3) Weight: <100kg
(4) Working conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃)
3. Complete the training content
(1) Pumping experiment
(2) Photovoltaic panel with load experiment
(3) Battery charging experiment.
